Automatic Traffic Barriers
Halsang automatic traffic barriers for opening widths up to 12 m.
Advantages
Quality
Traffic barriers are included in the product range with opening widths up to 12 m, which offer access control in combination with our other range of different gate solutions and professional fencing systems, fast installation and cost-effective.
Series S

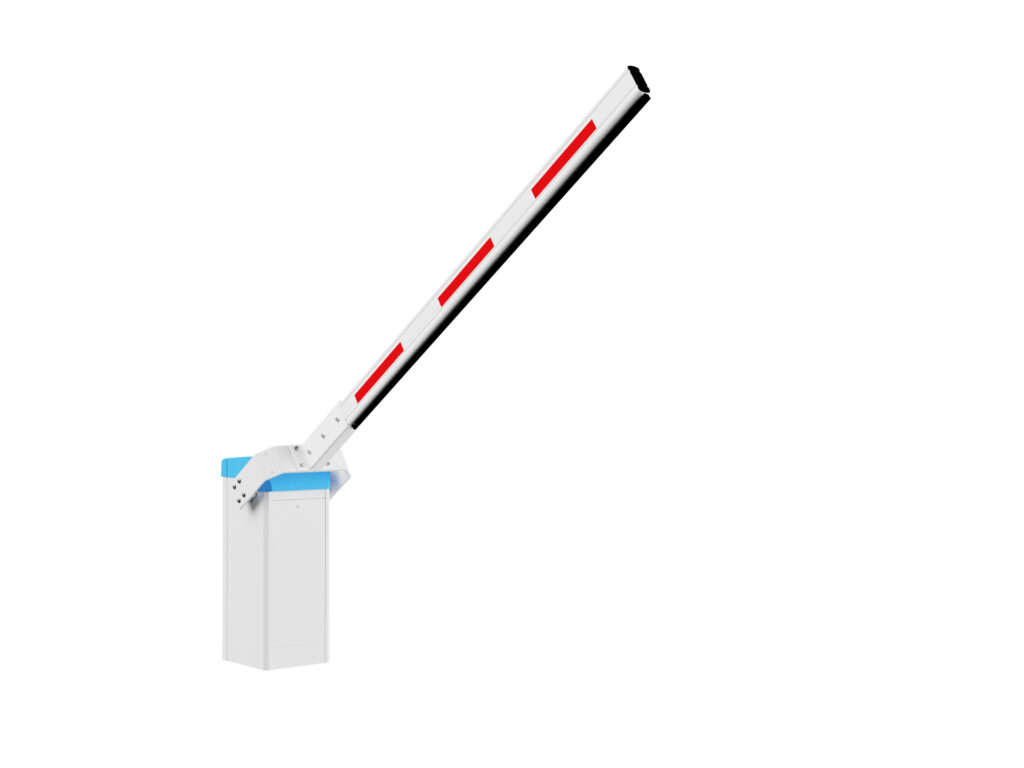

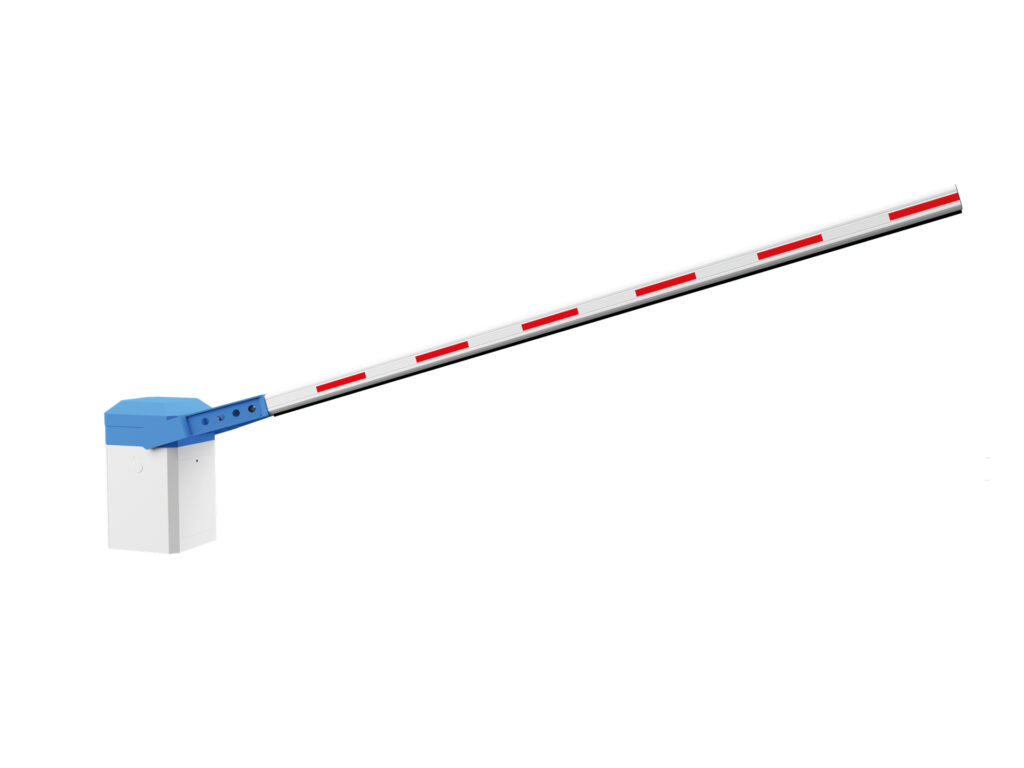

Are designed for protection of industrial entrances up to 8 m opening width. 24 BLDC motor. Power supply: 230 V 1-phase. Can be supplemented with folding top and bottom fences.
Koloss

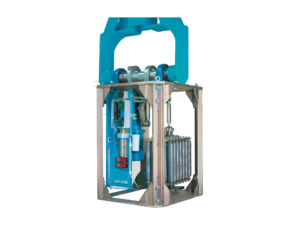

Are designed for protection of industrial entrances up to 12 m opening width. 230V AC motor. Power supply: 230V 1-phase. Can be supplemented with folding top and bottom fences.
Parking

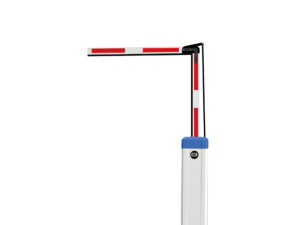

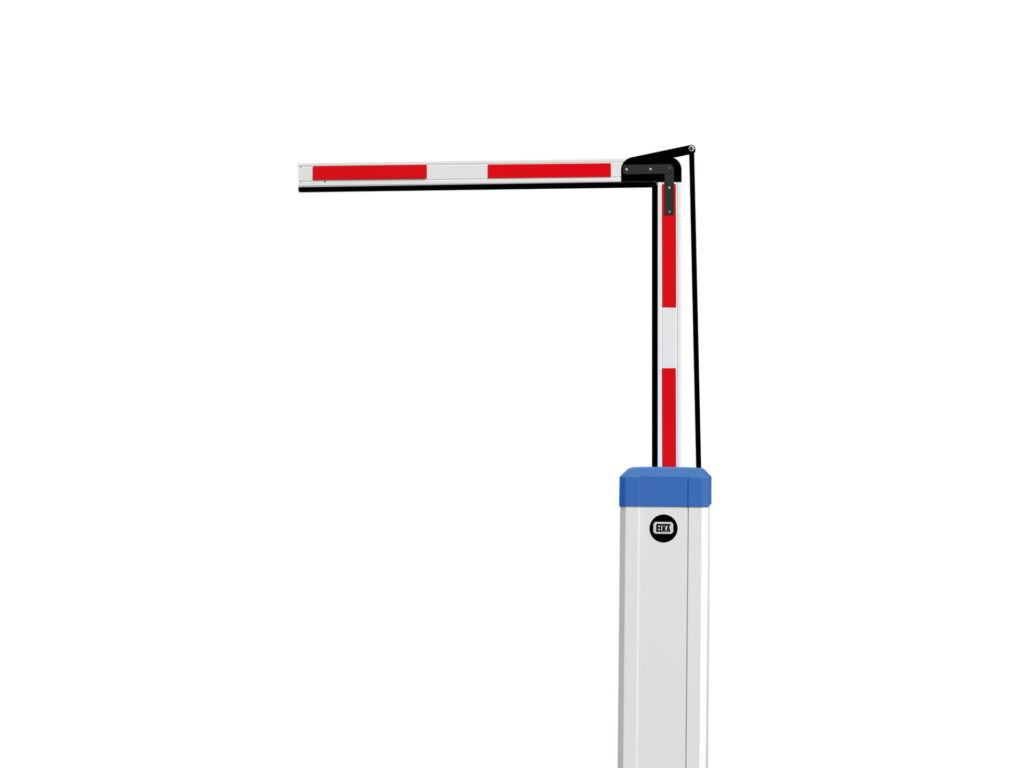

A series of traffic barriers designed for protection of industrial entrances and parking lots with up to 5 m opening width. 24 BLDC motor. Power supply: 230V 1-phase. Boom arm can also be delivered as articulated for low ceiling height. 100 % duty cycle. Force detection during closing.
Execution

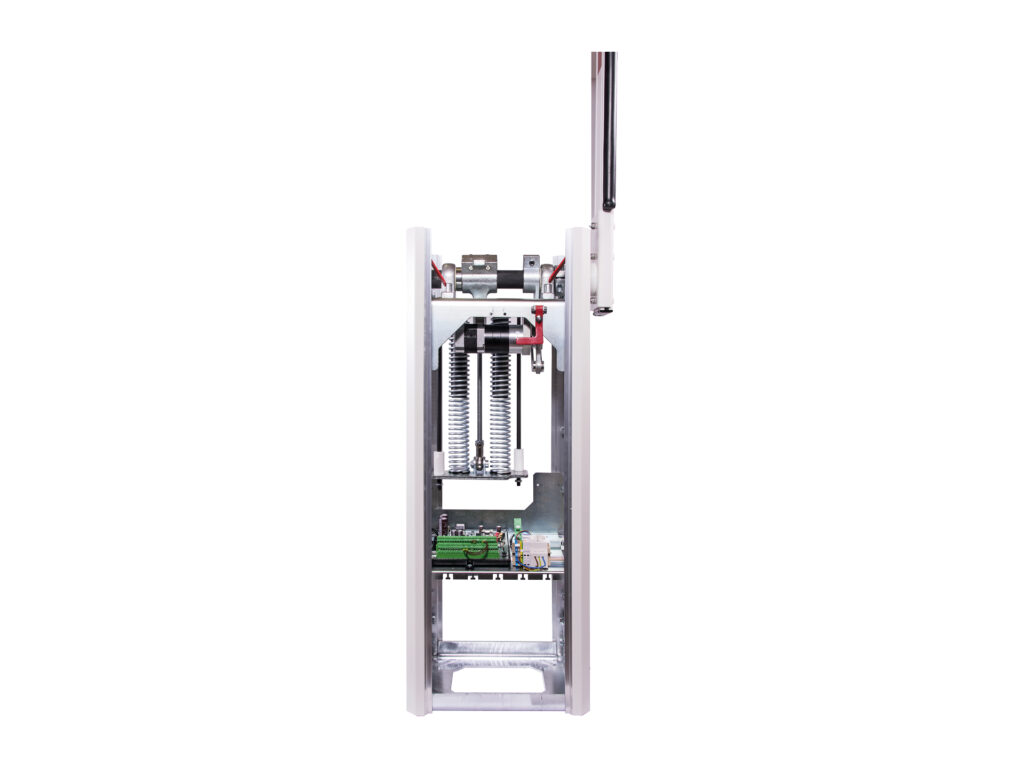

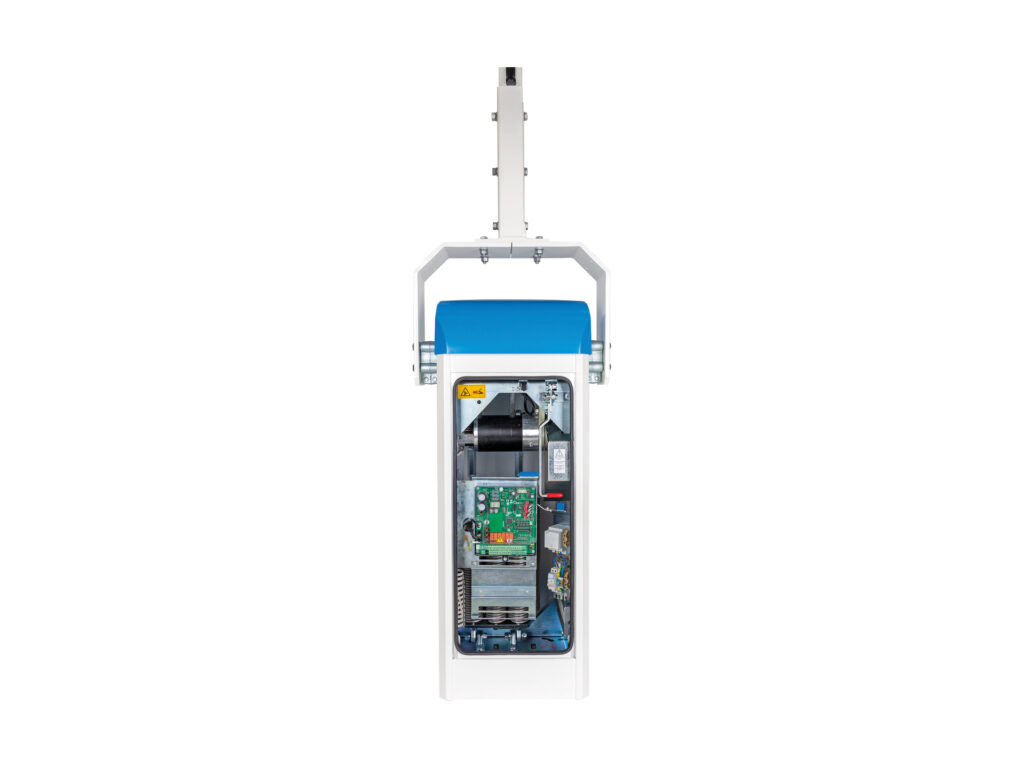

High performance which is achieved with electronic speed control, which protects the engine and gear. An efficient drive concept and robust components ensure intensive operation with a 100% work cycle.

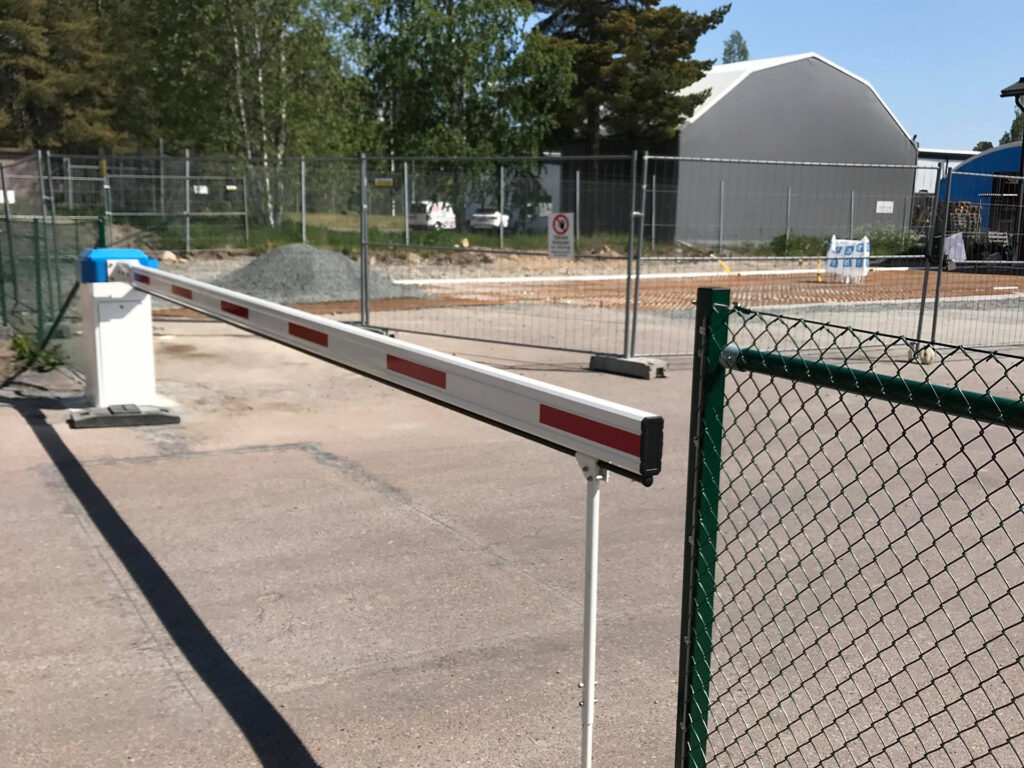

Boom arm support is ordered separately and is available in 2 versions – fixed height
alt. adjustable height and pending boom support following the boom during movement.

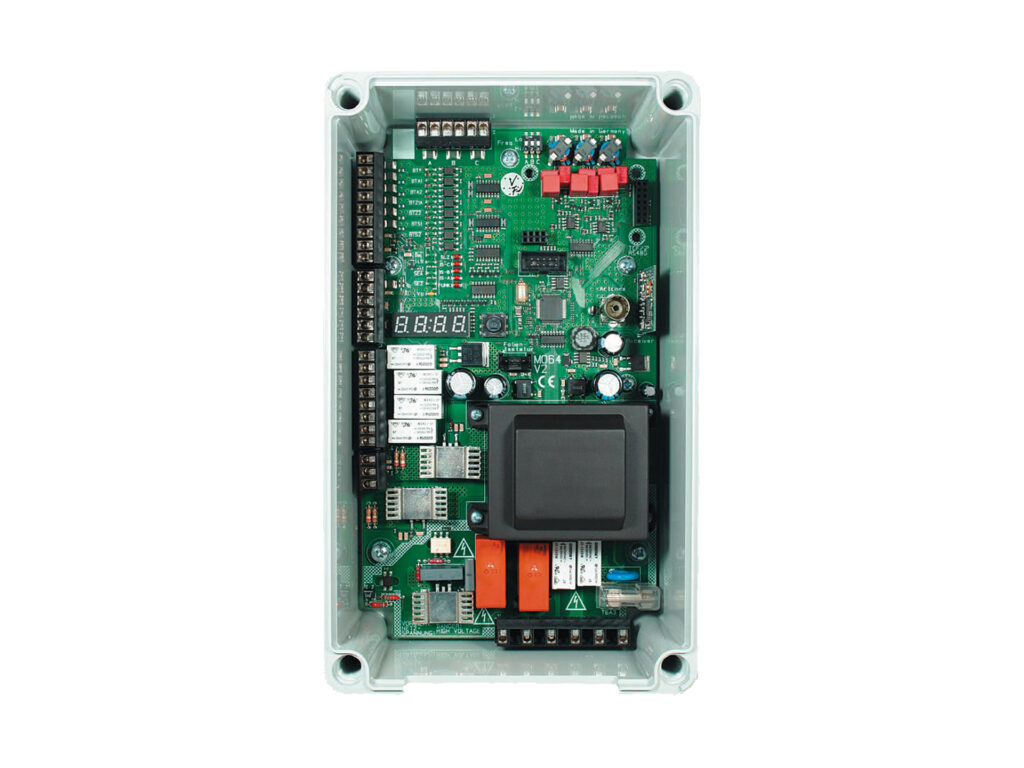

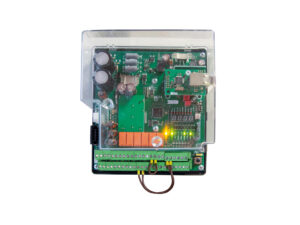

Control unit MO 64 Plus (KOLOSS) with 3 integrated 1-channel detectors for ground loops.
Compatible display TCP / IP or RS 485
Control unit MO 24 for the P & S series with 3 integrated 1-channel detectors for ground loops.
Compatible display TCP / IP or RS 485
Power supply all types: 240V AC, 50Hz
Powder-coated boom housing and boom arm in aluminum, with 10-year corrosion guarantee. Internal mechanical parts are galvanized. Oval or round aluminum arm, white plastic coating with red reflective tape and end seal.
Shorter boom arm length
The boom arm length can be shortened if needed (in steps of 50 cm), however, the number
of springs must be reduced (see manual).
Access control
The electronic operation can be programmed to suit each project or the customer’s special requirements. A wide selectable range offers: induction loop detection, photocells, key switches, radio-controlled remote control, card reader, keypad, coin toss.
Technical description
| Type | Boom arm length/profile mm | Effective boom arm length mm | Opening time sec |
|---|---|---|---|
| P 5000 | upp till 5000x100x25 | upp till 4780 | 3,8/4,5/5,5 |
| S 5000 | upp till 5000x100x50 | upp till 5170 | 4,0/5,5/7,0 |
| S 6000 | upp till 6000x138x60 | upp till 6170 | 5,0/6,5/8,0 |
| S 8000 | upp till 8000x138x60 | upp till 8170 | 7,0/8,5/10,0 |
| Koloss 120 | upp till 12000x170x140 | upp till 12000 | 12,0 |
Options
- Key switch
- Push-button
- Remote control

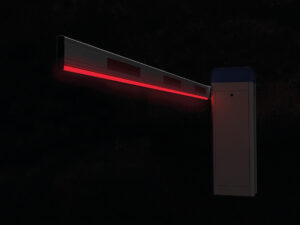

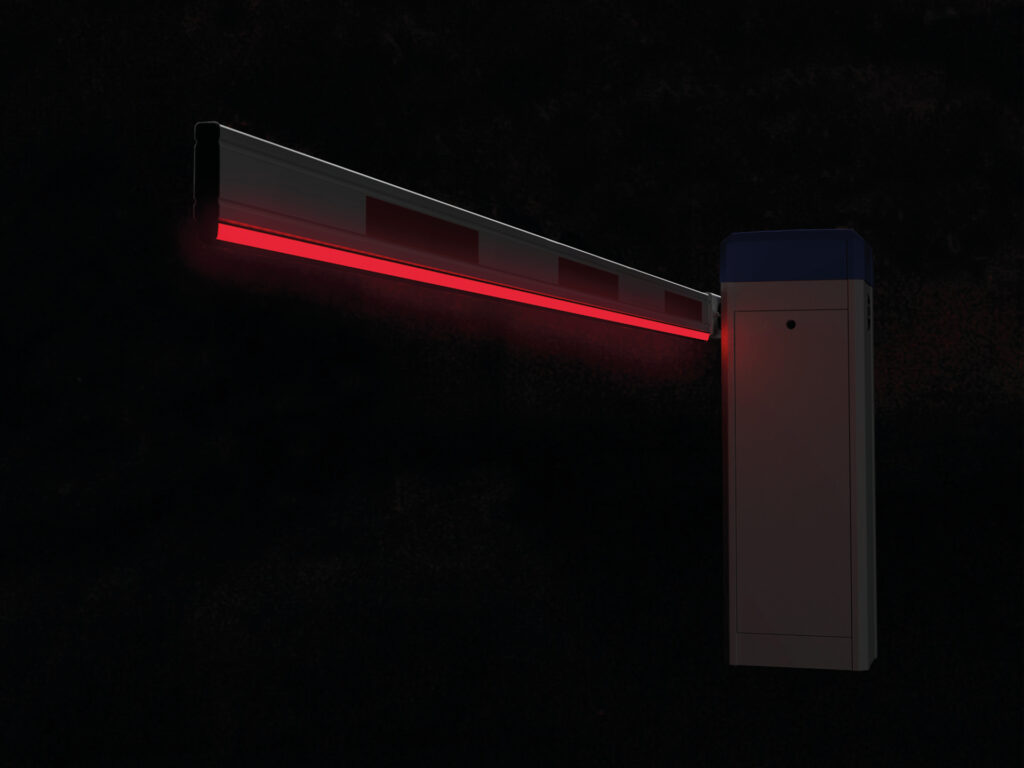

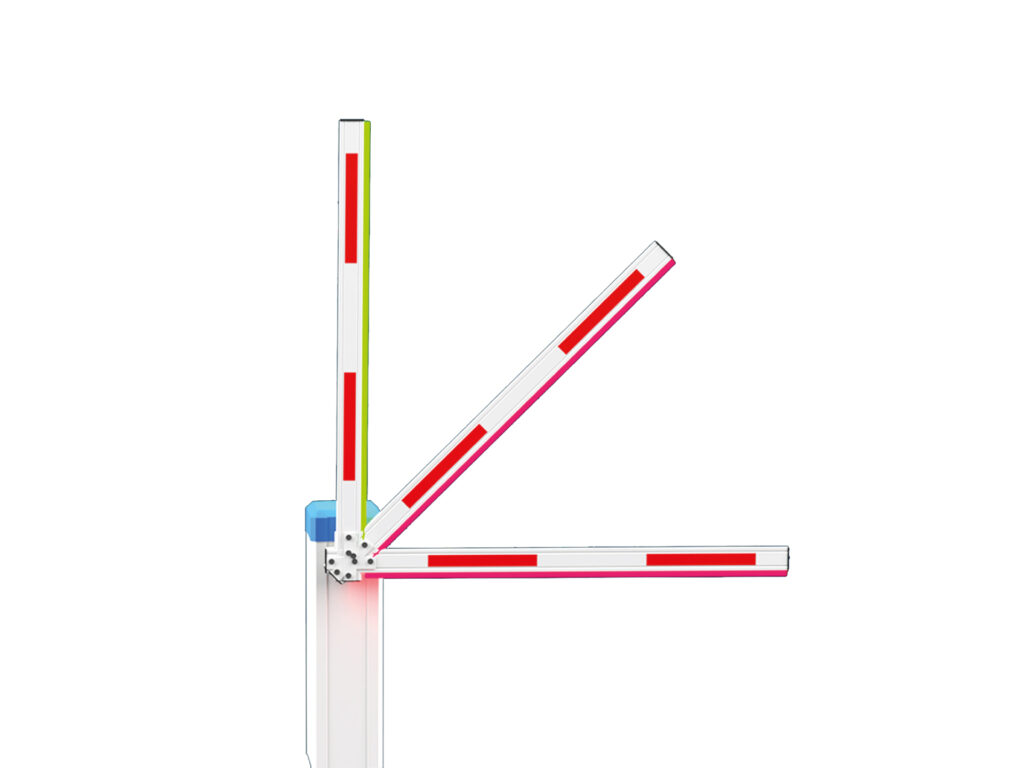

- LED lighting in boom arm (red X / green arrow)
- Token / coin opener
- Loop detector
- Hanging/Fixed fence over/under boom arm
- RAL colors on request (lid/boom housing)
